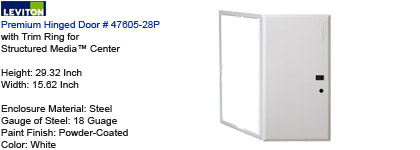

Premium Hinged Door with Trim Ring # 47605-28P
for Leviton 280 Series Structured Media Enclosures.
Box-LV-xxx

Link(s):

APPLICATION

Used with Leviton’s Structured Media® Center enclosures, premium hinged doors open 180° and can be easily mounted for left- or right-side opening, providing easy access for moves, adds, and changes. The full-frame design of the premium hinged cover conceals the fasteners and hides drywall cuts for a professional appearance. For additional security and to discourage tampering, Leviton also offers an optional lock and key set.

SPECIFICATION

The 28" hinged door shall be cULus Listed and made of 18-gauge white powder-coated steel. The hinged door shall feature left- and right-side mounting capabilities on Leviton's 28" Structured Media Center enclosures.

FEATURES
  • Full-frame design adds durability and security
  • White powder-coated steel provides a sleek appearance and scratch-resistant surface
  • Key slots on 28" hinged covers allow for easier installation
  • Built-in precision hinge and integrated frame design conceal fasteners and hide drywall cuts
  • Dynamic alternative to more conservative screw-on, flush-mount covers
  • Easy access for frequent moves, adds, and changes

DESIGN CONSIDERATIONS
  • Opens 180°
  • Mounts on left or right side

STANDARDS COMPLIANCE

  • Meets all applicable standards: cULus Listed

PHYSICAL SPECIFICATIONS

  • Dimensions:  28": 29.32" H x 15.62" W x 0.25" D
  • Materials:  18-gauge, white powder-coated steel

Drawing:
