Used with Leviton’s Structured Media™ enclosures (SMCs), the hinged covers open 180° and can be easily mounted for left- or right-side opening, providing easy access for frequent adds, moves and changes. For additional security, and to discourage tampering, Leviton also offers an optional lock and key set.

• Opens 180° and mounts on right or left side for easy access in any space

• White powder-coated steel provides sleek appearance with durability and scratch-resistant surface

• Snap-in Leviton logo supports left- or right-side mounting

• Built-in precision hinge and integrated design conceal fasteners and hide drywall cuts

• Dynamic alternative to more conservative screw-on, flush mount covers

• Easy access for frequent adds, moves and changes

• The Series 140 Hinged Covers shall be cULus and ACA listed and made of 18-gauge, white powder-coated steel.

• The hinged doors shall feature left- and right-side mounting

• capabilities on Leviton’s 140 Structured Media

• enclosures. The manufacturer shall provide a two-year limited

• product warranty. Product and performance warranties are

• extended to 20 years if installed as part of a Leviton Integrated

• Networks Certified System.

• Meets all applicable standards: cULus and ACA listed.

• Materials: 18-gauge, white powder-coated steel

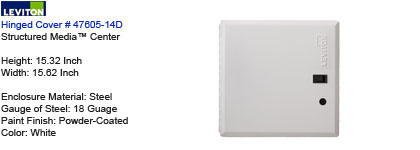

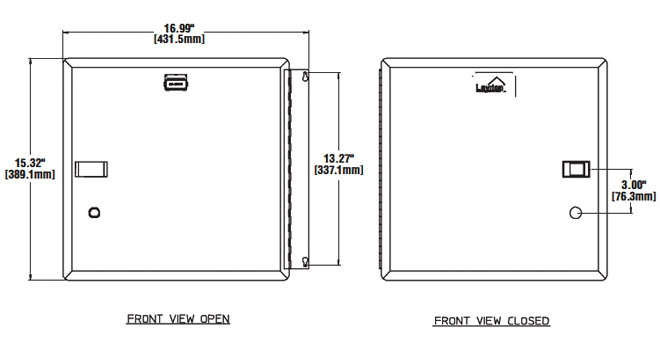

• Dimensions: Series 140 Hinged Cover: 15.32˝ H x 15.62˝ W x 0.25˝ D
