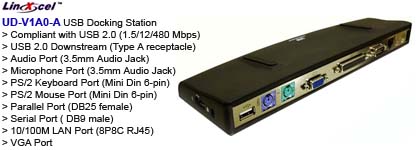

USB Notebook Docking Station
UD-V1A0-A with VGA Video Port
 Dock-NB-xxx

Benefits:

  • Compliant with Universal Serial Bus Specifications Rev. 2.0 (Data Rate 1.5/12/480 Mbps)

  • USB 2.0 downstream facing ports (type A receptacle)

  • Compliant with USB 2.0 Audio device class specification V1.0 (Fictitious 7.1 Speak)

  • Audio port (3.5mm audio jack)

  • Mic port (3.5mm audio jack)

  • PS/2 Keyboard port (Mini Din 6 pin)

  • PS/2 Mouse port (Mini Din 6 pin)

  • Parallel port (DB25 pin female)

  • Serial port ( DB9 pin male)

  • 10/100M LAN port (8P8C RJ45 shielding)

  • VGA port

Requirement:

  • IBM compatible 1.2 GHz or High processor

  • Windows Vista or XP with SP1

  • 512 MB of RAM or Higher

  • USB 2.0 port

  • 30MB of available disk space

  • CD-ROM drive

Package Contains:

  • Compact docking station unit

  • 1 x USB A to B cable

  • 1 x CD

  • 1 x 5V 2.6A switching power adapter

Specification:

  • Model No.: UD-D1A0-A

  • Upstream Port: 1 x USB Type B (F)

  • Downstream Port: 1xParallel, 1x Serial, 1x T, 1x PS2 Keyboard, 1x PS2 Mouse, 2x USB, 2x Audio, 1x VGA Port

  • LED's: N/A

  • Port Selection: N/A

  • Operation Temperature: N/A

  • Storage Temperature: N/A

  • Power Mode: Self Power / 5V 2.6A Power

  • Operating System: MS Window 98/SE /2000/ XP/ Vista

  • Unit Weight: 10.6 oz

  • Unit Dimensions: 264 x 87 x 23 (mm)

  • Package: Color gift box

  • Package Weight: 1.4 lbs

  • Package Dimensions: 9.5 x 7.5 x 2.9 (in)

  • Master Carton Quantity: 10 piece

  • Mater Carton Weight: 14 lbs

  • Master Carton Dimensions: 16 x 14 x 13 (in)
