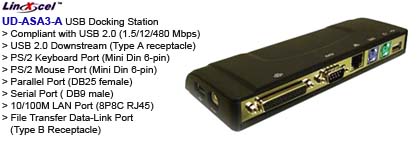

USB Notebook Docking Station
Linxcel UD-ASA3-A
Dock-NB-UD-ASA3

Benefits:

• Compliant with Universal Serial Bus Specifications Rev. 2.0 (Data Rate 1.5/12/480 Mbps)

• USB 2.0 downstream facing ports (type A receptacle)

• PS/2 Keyboard port (Mini Din 6 pin)

• PS/2 Mouse port (Mini Din 6 pin)

• Parallel port (DB25 pin female)

• Serial port ( DB9 pin male)

• 10/100M LAN port (8P8C RJ45 shielding)

• File transfer data-link port (Type B receptacle)

Requirement:

• IBM compatible 1.2 GHz or High processor

• Windows Vista or XP with SP1

• 512 MB of RAM or Higher

• USB 2.0 port

• 30MB of available disk space

• CD-ROM drive

Package Contains:

• Compact docking station unit

• 1 x USB A to B cable

• 1 x CD

• 1 x 5V 2.6A switching power adapter

Specification:

• Model No.: UD-ASA3-A

• Upstream Port: 1 x USB Type B (F)

• Downstream Port: 1P/1S/1T/1K/1M/2U Port

• LED's: N/A

• Port Selection: N/A

• Operation Temperature: N/A

• Storage Temperature: N/A

• Power Mode: Self Power / 5V 2.6A Power

• Operating System: MS Window 98/SE /2000

• Unit Weight: 6.8 oz

• Unit Dimensions: 183 x 70 x 25 (mm)

• Package: Color gift box

• Package Weight: 1.2 lbs

• Package Dimensions: 9.6 x 7.5 x 2.9 (in)

• Master Carton Quantity: 10 piece

• Mater Carton Weight: 14 lbs

• Master Carton Dimensions: 15.6 x 14.5 x 11 (in)
