Hard Drive Docking Station

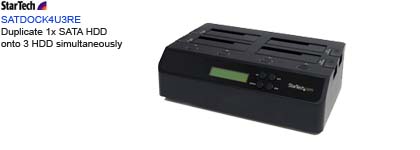

Startech SATDOCK4U3RE
Duplicate 1x SATA HDD onto 3 HDD simultaneously
Dock-HD-xxx

Link(s):

Overview:

The SATDOCK4U3RE USB 3.0 and eSATA 1-to-3 Hard Drive Duplicator docking station enables you to duplicate/clone a single SATA hard drive to up to three other SATA drives simultaneously, as a standalone device. The duplicator can also function as a regular 4-bay hard drive docking station, by connecting to a host computer system.

Able to perform 1:3 sector duplication, including HPA, from a single SATA drive onto three others simultaneously (at a rate of up to 72 MBps), the duplicator/docking station can save you time and effort. As an external HDD dock, it can be connected to your host computer through USB 3.0 or eSATA, providing data transfer speeds up to 5 Gbps or 3Gbps respectively, from the hard drives to your computer system.

Technical Specifications:

Humidity

8%~90% RH

Operating Temperature

5C to 80C (41F to 176F)

Storage Temperature

-40C to 70C (-40F to 158F)

Note

If used with the Apple Mac OS operating system, this device will function in USB 2.0 mode only as USB 3.0 is not currently supported by Apple. eSATA is fully compatible.

Chipset ID

JMicron JMB394 + JMS539

Color

Black

Drive Connectors

4 - SATA Data & Power Combo (7+15 pin) Receptacle

Drive Size

2.5in / 3.5in

Drive Type

SATA

Enclosure Type

Plastic

Fans

2 - 60 mm

Host Connectors

1 - eSATA (7 pin; Data) Receptacle

Host Connectors

1 - USB 3.0 B (9 pin; SuperSpeed) Female

Input Voltage

110 ~ 240 AC

Insertion Rating

15,000 cycles per bay

LED Indicators

4 - Drive Power/Activity

Max Drive Capacity

Tested up to 3.0 TB

Number of Drives

4

OS Compatibility

Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, and Linux

Output Current

6500mA

Output Voltage

12 DC

Port Multiplier

Yes

Power Adapter Included

Yes

Shipping (Package) Weight

5.58 lb [2.5 kg]

Type and Rate

SATA II (3 Gbps)

Type and Rate

USB 3.0 - 5 Gbit/s

Product Height

3.7 in [94 mm]

Product Length

6.69 in [170 mm]

Product Width

11.22 in [285 mm]

Product Weight

2.45 lb [1.1 kg]

Carton Quantity

4
