Multi-User
KVM Sharing Switch

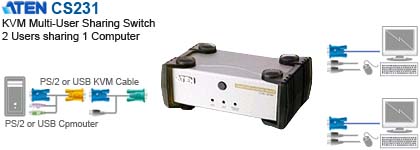

Aten CS231 2 Users share 1 Computer
2x USB Keyboard / 2x VGA Monitors / 2x USB Mice
work with PS/2 or USB
Computer
DS-MU-Aten-CS231
The CS231 is a powerful,
micro-processor controlled computer sharing device. It is a multi-user,
single-tasking device that enables two users to share the use of a
single computer - each from their own consoles (monitor, keyboard, and
mouse). The CS231 supports USB consoles and both PS/2 and USB computers.
Features:
-
Single
computer is shared by two USB consoles
-
Supports
USB and PS/2 computers
-
Multiplatform Support (Windows, Mac, Unix and Linux)
-
Manual or
Auto console selection
-
Control
the system with Hotkeys
-
Firmware
upgradable
-
Private
Mode for a privileged user
-
Screen
Saver function
-
Choose
from four Timeout settings
-
Supports
VGA, SVGA, and MultiSync monitors
-
No
software required
-
Device
Status displayed in OSD message
Package
Content:
1x Computer
Sharing Device
1x Computer Sharing Device
1x Power Adapter
1x Firmware Upgrade Cable
1x DIP Switch Sticker
1x User Manual
1x Quick Start Guide
|
Function |
Specification |
|
Computer
Connections |
1 |
|
Console
Connections |
2 |
|
Console Selection |
Pushbutton, Hotkey |
|
Connectors |
Console Ports |
Keyboard |
2 x USB Type A
Female (White) |
|
Video |
2 x HDB-15 Female
(Blue) |
|
Mouse |
2 x USB Type A
Female (White) |
|
Computer Port |
1 x SPHD-15/18
Female (Green) |
|
F/W Upgrade |
1 x RJ-11 Female
(Black) |
|
Power |
1 x DC Jack
(Black) |
|
Switches |
Mode Selection |
1 x Pushbutton |
|
Reset |
1 x Semi-recessed
Pushbutton |
|
DIP |
1 x 4 pin |
|
LEDs |
Mode |
1 (Orange) |
|
Selected |
2 (Green) |
|
Video |
1920x1440@60Hz,
DDC2B |
|
Timeout Settings |
5, 60, 125, 255
Seconds |
|
Power Consumption |
DC5.3V, 2.2 W
(Max.) |
|
Environment |
Operating
Temperature |
0-50˚C |
|
Storage
Temperature |
-20-60˚C |
|
Humidity |
0~80% RH, NC |
|
Physical
Properties |
Housing |
Metal |
|
Weight |
0.56 kg |
|
Dimensions ( L x W
x H ) |
14.30 x 8.70 x
5.50 cm |
|
