Overview:

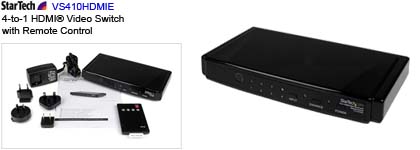

This 4 port HDMI® Switch lets you connect up to four HDMI-enabled output devices to a single HDMI input - eliminating the need to manually exchange cables to switch between high definition audio video sources.

The HDMI switch fully supports High Speed HDMI device connections, as well as Dolby Digital TrueHD and DTS-HD high definition audio formats and display resolutions up to 1080p(hdtv) / 1920x1200(computer), ensuring a high quality audio and video experience. Suitable for long distance connections, the switch offers a signal enhancement feature that can be used with longer cable connections, boosting the HDMI signal for optimized quality.

The switch provides an economical solution for connecting multiple HDMI out devices (Blu-Ray players, DVD Players, etc.) to a single port on a high definition LCD/Plasma TV.

Specification:

Hardware
Ports	4
Audio	Yes
Connector(s)
Connector A	4 - HDMI (19 pin) Female
Connector B	1 - HDMI (19 pin) Female
Performance
Maximum Cable Length	65.6 ft [20 m]
Supported Resolutions	HDTV - 480i~1080p PC - 640x480~1920x1200
Color Depth	30/36-bit Deep Color
Bandwidth	2.25Gbps (Single Link)
Audio Specifications	Supports Dolby Digital TrueHD and DTS-HD
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Length	9.4 in [240 mm]
Product Width	4.1 in [104 mm]
Product Height	1.7 in [44 mm]
Product Weight	44.1 oz [1250 g]
Power
Power Adapter Included	Yes
Input Voltage	110 ~ 240 AC
Output Voltage	5 DC
Output Current	1A
Center Tip Polarity	Positive
Packaging Information
Shipping (Package) Weight	1.4 lb [0.7 kg]
What's in the Box
Included in Package	1 - HDMI® Video Switch
	1 - Universal Power Adapter (US/UK/EU/AUS)
	1 - Instruction Manual
