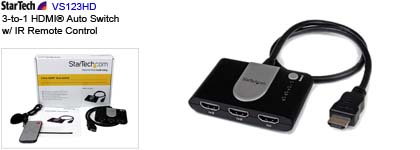

The VS123HD 3-port HDMI® Auto Switch features three prioritized HDMI input ports. If the active HDMI source is turned off, disconnected, or otherwise lost, the switch automatically selects the next available HDMI signal as the priority output, ensuring the display is always receiving a signal.
The automatic switch includes an IR Remote Control, so you’ll be able to share an HD projector or display between three HDMI audio/video sources, with the option to manually control the switch from a distance or through the easy-to-use front panel toggle button.
Ideal for High-Definition applications, this 3-in/1-out HDMI switch supports true High-Definition 1080p resolutions (WUXGA/1920x1200 from PC/computer) as well as 7.1 Surround Sound audio, ensuring the best possible multimedia experience from connected devices.
Specification:
Hardware Ports 3 Audio Yes Industry Standards High Speed HDMI®, HDCP Output Signal HDMI Connector(s) Connector B 3 - HDMI (19 pin) Female Connector A 1 - HDMI (19 pin) Male Performance Maximum Digital Resolutions 1920x1200 Max Distance 10 m / 33 ft Wide Screen Supported Yes Physical Characteristics Product Height 1 in [25 mm] Color Black Enclosure Type Plastic Product Length 3.2 in [81 mm] Product Width 2.2 in [55 mm] Product Weight 3.5 oz [99.5 g] Indicators LED Indicators 3 - Two Green for Display Status, and one red for power. Environmental Operating Temperature 0°C to 70°C (32°F to 158°F) Storage Temperature -65°C to 150°C (-85°F to 302°F) Humidity 10% to 85%RH Special Notes / Requirements Note Port 1 is set to have higher priority than port 2 or port 3 when all signals are on. Port 2 is set to have higher priority than port 3 when both signals are on, but Port 1 is off. Packaging Information Shipping (Package) Weight 6.3 oz [178.2 g] What's in the Box Included in Package 1 - 3 Port High Speed HDMI® Auto Switch 1 - Remote Control 1 - IR Extender Cable 1 - Instruction Manual
