CPU Cooling
Fan with Heatsink (Heat-Sink)

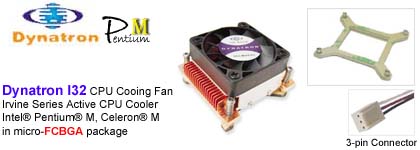

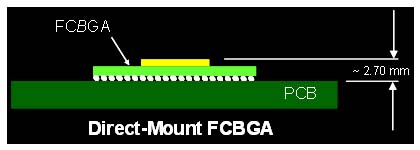

Dynatron (Top Motor) Irvine Series i32 Active CPU Cooler Intel® recommended Pentium® M & Celeron® M in micro-FCBGA package FNC-M-I32-FCBGA Model Number: Dynatron ( Top Motor ) Irvine Series i32 Application: Intel® recommended Pentium® M & Celeron® M in micro-FCBGA package CPU processor Overall Dimension: 50.0 x 50.0 x 25.0 mm Thermal Resistance: 1.601 °C/W Weight: 110 g Fan Dimension: 40x40x10 mm Fan Speed: 5500 Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: ---- A Power: 1.44 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 4.57 CFM Air Pressure: 0.077 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 50.0 x 50.0 x 13.5 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.8 mm Thickness of Fin: 0.35 mm Number of Fin: 19 Height of Fin: 7.50 mm Height of Base: 6.00 mm Length of Base: 50.0 mm |
