FNC-F-A84G CPU Cooling Fan with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) A84G AMD Dual Core Socket F 1207

CPU Cooling Fan with Heatsink (Heat-Sink)

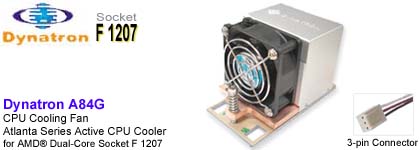

Dynatron (Top Motor) Atlanta Series A84G Active CPU Cooler
for AMD Dual-Core Socket F 1207
FNC-F-A84G

Model Number: Dynatron ( Top Motor ) Atlanta Series A84G
Application: AMD® Dual-Core Socket F 1207 for 2U Server
Overall Dimension: 115.3 x 72.0 x 66.5 mm
Thermal Resistance: ---- °C/W
Weight: 695 g
RoHS Compliance

Fan Dimension: 60x60x25 mm
Fan Speed: 7000 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ----A
Power: 4.8 Watt (s)
Operation Temp.: ----°C
Air Flow: 35.3 CFM

Noise Level: 45.9 dBA
Air Pressure: 0.33 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: ---- mm
Heat Sink Material: Copper heatsink with L Fin
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
