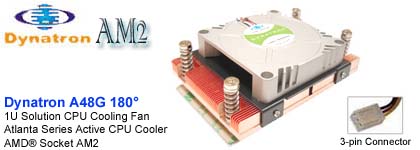

FNC-AM2-A48G-1UB CPU Cooling with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) 1U Solution A48G Socket AM2

CPU Cooling Fan (Blower) with Heatsink (Heat Sink)
1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Atlanta Series A48G 180°
for AMD® Socket AM2
FNC-AM2-A48G-1UB

Model Number: Dynatron ( Top Motor ) Atlanta Series A48G
Application: AMD® Socket AM2 for 1U server
Overall Dimension: 106 x 79 x 27.5 mm
Thermal Resistance: ---- °C/W
Weight: 445 g
RoHS Compliance

Fan (Blower) Dimension: 70x70x16 mm
Fan (Blower) Speed: 7000 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power: 8.4 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 12.83CFM

Noise Level: 54.40 dBA
Air Pressure: 1.70 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 106 x 79 x 12.5 mm
Heat Sink Material: Copper
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
