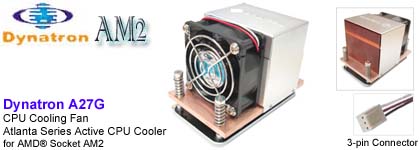

FNC-AM2-A27G CPU Cooling Fan with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) A27G AMD Socket AM2

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Atlanta Series A27G
Active CPU Cooler for AMD Socket AM2
FNC-AM2-A27G

Model Number: Dynatron ( Top Motor ) Atlanta Series A27G
Application: AMD® Socket AM2 for 2U Server and up
Overall Dimension: 106 x 73 x 66 mm
Thermal Resistance: ---- °C/W
Weight: 750 g
RoHS Compliance

Fan Dimension: 60x60x25 mm
Fan Speed: 7000 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ----A
Power: 4.8 Watt (s)
Operation Temp.: ----°C
Air Flow: 35.3 CFM

Noise Level: 45.9 dBA
Air Pressure: 0.33 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: ---- mm
Heat Sink Material: Copper heatsink
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
