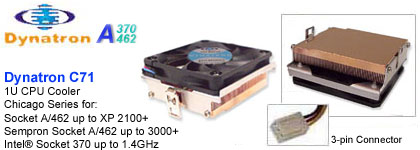

CPU Cooling Fan with Heatsink
1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Chicago Series C71
for Socket A, Socket 370, Socket 462
FNC-A-C71-1U

Model Number: Dynatron ( Top Motor ) Chicago Series C71
Application: AMD:K7 (Socket A / 462) up to XP 2100+ & Sempron Socket A/462 up to 3000+; Intel® Socket 370 up to 1.4GHz for 1U server
Overall Dimension: 62 x 63 x 24 mm
Thermal Resistance: 0.62 °C/W
Weight: 207 g

Fan Dimension: 60 x 60 x 10 mm
 Fan Speed: 5300 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: 0.32 A
Power: 3.84 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 23.39 CFM
 Noise Level: 38.65 dBA
Air Pressure: 0.18 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 60 x 50 x 10.7 mm
Heat Sink Material: Copper C1020
 Heat Sink Pitch: 1.3 mm
Thickness of Fin: 0.3 mm
Number of Fin: 60
Height of Fin: 5.3 mm
Height of Base: 5.4 mm
Length of Base: 60 mm
