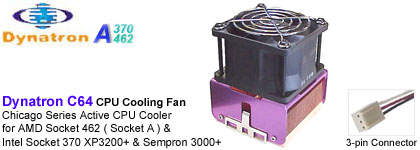

FNC-A-C64-CPR CPU Cooling with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) C64

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Chicago Series C64
DY1206BH-638 (BH-638) Active CPU Cooler
for AMD Socket 462 ( Socket A ) &
Intel Socket 370 XP3200+ & Sempron 3000+
FNC-A-C64-CPR

Model: Dynatron ( Top Motor ) Chicago Series C64
Application: AMD® K7 Athlon Socket A/462 up to XP3200+, & Extreme Overclocking & Sempron Socket A/462 up to 3000+
Thermal Resistance: AMD:0.44°C/W, INTEL®:0.54°C/W
Overall Dimension: ---- mm
Weight: 435 g

Fan Dimension: 60 x 60 x 38 mm
Fan Speed: 7000 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V +/- 15%
Rated Current: ---- A
Power: ---- Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: ---- CFM

Noise Level: ---- dBA
Air Pressure: ---- inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output
Wire Length:

Heat Sink Dimension: ---- mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
