CPU Cooling
Fan with Heatsink (Heat-Sink)

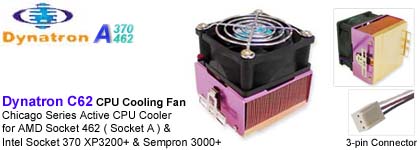

Dynatron (Top Motor) Chicago Series C62 DY1206BH-625 (BH-625) Active CPU Cooler for AMD Socket 462 ( Socket A ) & Intel Socket 370 XP3200+ & Sempron 3000+ FNC-A-C62-CPR Model: Dynatron ( Top Motor ) Chicago Series C62 Application: AMD® K7 Athlon Socket A/462 up to XP3200+, & Overclocking & Sempron Socket A/462 up to 3000+ Thermal Resistance: AMD:0.46°C/W, INTEL®:0.56°C/W Overall Dimension: 63.0 x 62.0 x 60.0 mm Weight: 483 g Fan Dimension: 60 x 60 x 25 mm Fan Speed: 6800 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V +/- 15% Rated Current: 0.40 A Power: 4.80 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 37.61 CFM Air Pressure: 0.33 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Wire Length: Heat Sink Dimension: 63.0 x 63.0 x 30.0 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.40 mm Thickness of Fin: 0.40 mm Number of Fin: 40 Height of Fin: 23 mm Height of Base: 7 mm Length of Base: 60 mm |
