CPU Cooling
Fan with Heatsink (Heat-Sink)

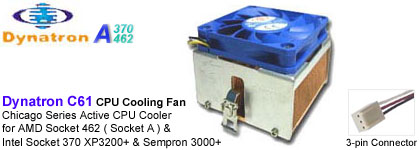

Dynatron (Top Motor) Chicago Series C61 DY1206BH-610 (BH-610) Active CPU Cooler for AMD Socket 462 ( Socket A ) & Intel Socket 370 XP3200+ & Sempron 3000+ FNC-A-C61-CPR Model: Dynatron ( Top Motor ) Chicago Series C61 Application: AMD®:K7 1.5/1.6/1.7Ghz, Athlon Socket A/462 up to XP2700+, XP3000+ & XP3200+ & Sempron Socket A/462 up to 2800+; Intel®:FC-PGA(Socket 370) 866/933MHZ, 1.00 Ghz / 1.26 GhZ / 1.40 Ghz Thermal Resistance: AMD:0.5°C/W, INTEL®:0.6°C/W Overall Dimension: ---- Weight: 370 g Fan Dimension: 60 x 60 x 10 mm Fan Speed: 5300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V +/- 15% Rated Current: 0.30 A Power: 3.60 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 24.40 CFM Air Pressure: ---- inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Wire Length: Heat Sink Dimension: 61.0 x 64.0 x 40.0 mm Heat Sink Material: ---- Heat Sink Pitch: ---- mm Thickness of Fin: ---- mm Number of Fin: ---- Height of Fin: ---- mm Height of Base: ---- mm Length of Base: ---- mm |
