CPU Cooling
Fan with Heatsink (Heat-Sink)

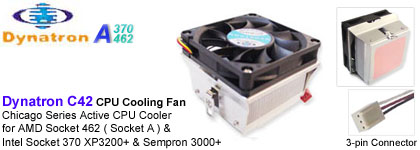

Dynatron (Top Motor) Chicago Series C42 Active CPU Cooler for AMD Socket 462 ( Socket A ) & Intel Socket 370 XP3200+ & Sempron 3000+ FNC-A-C42-3200 Model: Dynatron ( Top Motor ) Chicago Series C42 Application: AMD®:K7 Athlon Socket A/462 up to XP2700+, XP3000+ & XP3200+ & Sempron Socket A/462 up to 2800+; Intel®:FC-PGA(Socket 370)933MHZ,1/1.26GHZ, 1.40 Ghz Thermal Resistance: Overall Dimension: 72 x 72 x 53 mm Weight: 258 g Fan Dimension: 70 x 70 x 15 mm Fan Speed: 4300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V +/- 15% Rated Current: 0.34 A Power: 4.08 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 30.24 CFM Air Pressure: 0.16 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Wire Length: Heat Sink Dimension: 61.9 x 63.0 x 36.2 mm Heat Sink Material: Aluminum A1070/A6063 & Copper Base Heat Sink Pitch: 1.5 mm Thickness of Fin: 0.5 mm Number of Fin: 40 Height of Fin: 21.00 mm Height of Base: 9.00 mm Length of Base: 60 mm |
