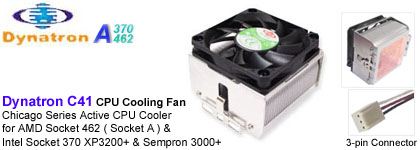

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Chicago Series C41
DC1206BM-L/610-P-Cu Active CPU Cooler
for AMD Socket 462 ( Socket A ) &
Intel Socket 370
XP3200+ & Sempron 3000+
FNC-A-C41-3200


Model:
Dynatron ( Top Motor ) Chicago Series C41
Application:
AMD:K7 Athlon Socket A/462 AMD Recommended up to XP2700+, XP3000+ & XP3200+ & Sempron Socket A/462 up to 3000+; Intel:FC-PGA(Socket 370) 933MHZ,1/1.26GHZ, 1.40 Ghz
Thermal Resistance: 0.476 C/W
Overall Dimension: 61 x 63 x 46.2 mm
Weight: 246 g

Fan Dimension:
60 x 60 x 10 mm
Fan Speed: 4500 10% rpm
Bearing: Ball Bearing
Rated Voltage: 12V +/- 15%
Rated Current: 0.24 A
Power: 2.88 Watt(s)
Operation Temp.: -10C ~ +65C
Air Flow: 19.86 CFM
Noise Level: 33.84 dBA
Air Pressure: 0.13 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Wire Length:

Heat Sink Dimension:
61.9 x 63.0 x 36.2 mm
Heat Sink Material:
Aluminum A1070/A6063 & Copper Base

Heat Sink Pitch: 1.5 mm
Thickness of Fin: 0.5 mm
Number of Fin: 40
Height of Fin: 21.00 mm
Height of Base: 9.00 mm
Length of Base: 60 mm
