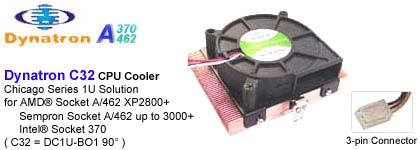

CPU Cooling Fan (Blower) with Heatsink
 1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Chicago Series C32
for Socket A, Socket 370, Socket 462
( C32 = DC1U-BO1 90° )
FNC-A-C32-1UB

Model Number: Dynatron ( Top Motor ) Chicago Series C32
Application: AMD® Socket A/462 XP2800+ & Sempron Socket A/462 up to 3000+; Intel® Socket 370 for 1U server
Overall Dimension: 78.8 x 60 x29.5  mm
Thermal Resistance: ---- °C/W
Weight: 317 g

Fan (Blower) Dimension: 60 x 60 x 15 mm
 Fan (Blower) Speed: 6000 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: 0.47 A
Power: 5.64 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 7.4 CFM
 Noise Level: 49.80 dBA
Air Pressure: 1.12 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 78.8 x 60 x 15 mm
Heat Sink Material: Copper C1020
 Heat Sink Pitch: 1.3 mm
Thickness of Fin: 0.4 mm
Number of Fin: 46
Height of Fin: 8 mm
Height of Base: 3.8 mm
Length of Base: 78.8 mm
