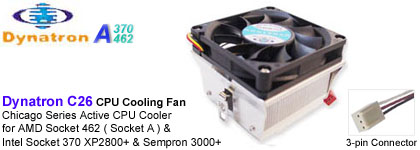

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Chicago Series C26 Active CPU Cooler
for AMD Socket 462 ( Socket A ) &
Intel Socket 370
XP2800+ & Sempron 3000+
FNC-A-C26-2800


Model:
Dynatron ( Top Motor ) Chicago Series C26
Application:
AMD:K7 Athlon Socket A/462 up to XP2800+ & Sempron Socket A/462 up to 3000+ ; INTEL:Socket 370 - 933MHZ and 1/1.26GHZ and 1.40 Ghz & FC-PGA2 up to 2.20 GHz
Thermal Resistance:
Overall Dimension: 72 x 72 x 53 mm
Weight: 190 g

Fan Dimension:
70 x 70 x 15 mm
Fan Speed: 4300 10% rpm
Bearing: Ball Bearing
Rated Voltage: 12V +/- 15%
Rated Current: 0.34 A
Power: 4.08 Watt(s)
Operation Temp.: -10C ~ +65C
Air Flow: 30.24 CFM
Noise Level: 38.58 dBA
Air Pressure: 0.16 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Wire Length:

Heat Sink Dimension:
61.9 x 63.0 x 36.2 mm
Heat Sink Material:
Aluminum A1070/A6063

Heat Sink Pitch: 1.5 mm
Thickness of Fin: 0.5 mm
Number of Fin: 40
Height of Fin: 20.75 mm
Height of Base: 6.20 mm
Length of Base: 60 mm
