CPU Cooling
Fan with Heatsink (Heat-Sink)

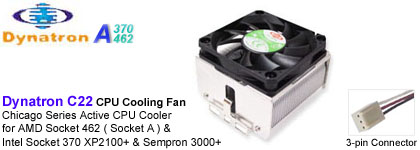

Dynatron (Top Motor) Chicago Series C22 Active CPU Cooler for AMD Socket 462 ( Socket A ) & Intel Socket 370 XP2100+ & Sempron 3000+ FNC-A-C22-2100 Model: Dynatron ( Top Motor ) Chicago Series C22 (DC1206BM/L-610-T) Application: AMD:K7 (Socket A/462) AMD Recommended up to XP2100+, MP2100+ & Sempron 3000+; INTEL: Socket 370 - 933MHZ and 1/1.26GHZ and 1.40 Ghz & FC-PGA2 up to 2.20 GHz Thermal Resistance: AMD:0.49°C/W, INTEL®:0.59 °C/W Overall Dimension: 70 x 63 x 46 mm Weight: 178 g Fan Dimension: 60 x 60 x 10 mm Fan Speed: 4500 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V +/- 15% Rated Current: 0.24 A Power: 2.88 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 19.86 CFM Air Pressure: 0.13 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Wire Length: Heat Sink Dimension: 61.9 x 63.0 x 36.2 mm Heat Sink Material: Aluminum A1070/A6063 & Chromeric T-725 Thermal Pad Heat Sink Pitch: 1.5 mm Thickness of Fin: 0.5 mm Number of Fin: 40 Height of Fin: 20.75 mm Height of Base: 6.20 mm Length of Base: 60 mm |
