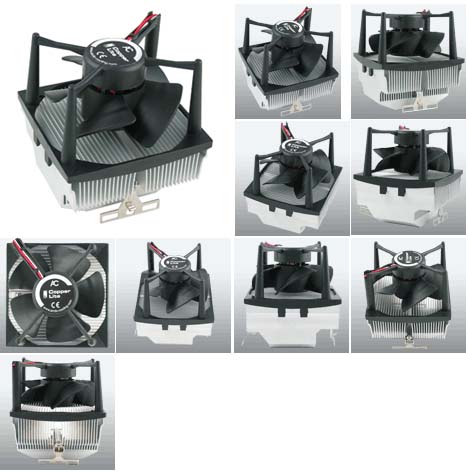

CPU Cooling Fan with Heatsink ( Active CPU Cooler )
Arctic Cooling Silent 3 Alias Copper Lite
for all AMD Duron, Sempron, Athlon XP
FNC-A-ARC-CS3

Model: Arctic Cooling Silent 3 Alias Copper Lite
Application:
all AMD Duron, Sempron, Athlon XP
Thermal Resistance: 0.49C/Watt

Overall Dimension: 88 x 82 x 79 mm
Weight: 298 g

Fan Dimension:
77 x 77 x 42 mm
Fan Speed: 2200 rpm
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current:
0.13 A
Power: 1.56 Watt(s)
Operation Temp.:
Air Flow:
32 CFM / 55 m3/h
Noise Level: 1.0 Sone, The noise level is measured in Sone (loudness) instead of dB (sound intensity).
Air Pressure:
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Wire Length:

Heat Sink Dimension:
Heat Sink Material:
Aluminum

Heat Sink Pitch:
Thickness of Fin:
Number of Fin:
Height of Fin:
Height of Base:
Length of Base:


Relevant Height
The relevant height for the air flow, measures the height of which air can be drawn in. A fan mounted above this height, will not influence the airflow negatively. Therefore for accurate results when the total height of a standard fan is compared with a reversed mounted fan, the relevant height for airflow must be used.
Noise Level

The noise level is measured in Sone (loudness) instead of dB (sound intensity).
The loudness depends upon ears response curves and tells you exactly, how bothering a certain noise is.
Thermal Compound
We ship our coolers with the ARCTIC MX-1 thermal compound. This compound hardens during the first 200h while the performance improves steadily. With heating up the paste / heatsink the process can be shortened. The performance is even from the beginning good enough to cool your CPU reliable.

Keyword(s) setting
CPU Cooler Arctic Cooling Copper Silent 3 Alias Cooper Lite
for all AMD Duron, Sempron, Athlon XP
CPU Cooling Fan Arctic Copper Silent 3 with HeatSink (Heat-Sink)
for all AMD Duron, Sempron
Active CPU Cooler Copper Silent 3 Alias Copper Lite with Quiet 12V DC Fan and Heat-Sink by Arctic Cooling

for Reference only:

  • DC Fans usually come in 5V, 12V, 24V or 48V. Computer fans, PC systems fans, CPU cooling fans, Chipset fans, hard drive coolers usually use 12V DC fans or 5V DC fans.
  • Ball Bearings & Sleeve Bearings:  Ball Bearings are better quality bearing option for fans. Ball Bearing Fans last longer but have higher temperature ratings and it is noisier. Manufacturers also make Double Ball Bearing Fans to extend their life circle or Single Ball Bearing Fans to cut the costs. Sleeve Bearing fans are a less expensive and less robust alternative to Ball Bearing fans.
  • Ceramic Bearing: Ceramic bearings are rotary bearings constructed of ceramic. Ceramic hybrid bearings, the most common type of ceramic bearing, are constructed of steel inner and outer rings with ceramic balls in place of steel. These bearings have several advantages over all steel bearings, such as higher speed and acceleration capability, increased stiffness, higher accuracy, lower friction and heat generation, reduced lubrication requirements, low thermal expansion, and extended operation life. Bearings containing all ceramic balls are also nonconductive and are commonly used in electric motor applications.  Nanometer Ceramic Bearing ( So called Ceramic Bearing, NC Bearing, NCBearing, or NCB ) has longer Life Span ( Double Hours of Sleeve and Ball Bearing ), lower noise, better Durability, Anti-Shock/ Anti-Vibration, Water Proof, Resistant to Oxidation and Chemicals.
    Compare NCB to Steel and Copper on Hardness (HV) and Extension Coefficient (ETC 10-6/˚C):
    NCB - 1340 (HV), 3.0~8.3 (ETC 10-6/˚C),
    Steel - 560 (HV), 11.2~14.3 (ETC 10-6/˚C),
    Copper - 240 (HV), 20 (ETC 10-6/˚C).
    Info Source: Global Win Technology Co., Ltd.
  • Heat Pipe: A heat pipe is a simple device that can quickly transfer heat from one point to another, which is usually used for cooling an electronic component in air-conditioners, refrigerators, heat exchangers, transistors, capacitors, etc. Heat pipes are also used in laptops to reduce the working temperature for better efficiency.
  • Hydrodynamic Bearing ( HDX Hydro Dynamic Technology ): hydrodynamic bearings are fluid film bearings that rely on a film of oil or air to create a clearance between the moving and stationary elements.
  • VAPO Bearing & MagLev Design: Vapo bearings are made of a material specially treated for wear-resistance and impact-resistance. When used in conjunction with the MagLev, it creates a spring function, which helps the fan motor to bear impact. MagLev design helps the rotor to rotate evenly in a fixed orbit within the orbit center without any friction with the bearing bore. No vibration occurred. This new system eliminates the use of oil rings and washers, thus leaving space for the release of gas occurring during normal operation. No more clogging problems. Vapo bearing is named after this character.
  • CFM: Cubic Feet per Minute (airflow).

  • DC Fan Power Connector: Computer fans usually get its power from switching power supply with Molex 4-pin power connector or with 3-pin PC Mother Board connector to be connected to the system's main board. Sometimes the DC Fans also come with different types of 3-pin, 2-pin connectors or just with bare wires.
  • Brushless DC fans: Most computers use brushless DC motors since they are clean (no brushes to create carbon dust or to wear out) and are now smaller and less expensive.
