CPU Cooling Fan with Heatsink (Heat-Sink)

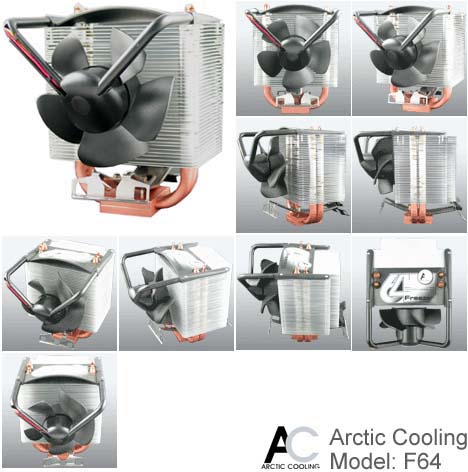

Arctic Cooling Freezer 64 (F64) Active CPU Cooler
for all AMD Sempron (Socket 754), AMD Athlon 64 up to 5000+
AMD Athlon 64 up to FX-59, AMD Opteron
FNC-775-ARC-F64


Extremely Quiet - The low speed 80 mm fan reduces the noise level to a minimum. The patented fan holder is able to practically eliminate the typical buzzing sound of 80mm fans.

Powerful cooling -
The Heat Pipes with expanded diameter are able to transfer heat up to 200 Watt. The heat exchanger is built of 40 fins and consists of a surface area of over 5000 cm2 and allows for resistance free energy transfer to air.


Thermal Compound -
We ship our coolers with the ARCTIC MX-1 thermal compound. This compound hardens during the first 200h while the performance improves steadily. With heating up the paste / heatsink the process can be shortened. The performance is even from the beginning good enough to cool your CPU reliable
.

Model:
Arctic Cooling Freezer 64 ( F64 )

Application:
all AMD Sempron (Socket 754), AMD Athlon 64 up to 5000+, AMD Athlon 64 up to FX-59, AMD Opteron
Thermal Resistance: 0.20°C/Watt

Overall Dimension: 92 x 114 x 120 mm
Weight: 460 g

Fan Dimension:
77 x 77 x 42 mm
Fan Speed: 2200 RPM
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current:
0.13 A
Power: 1.56 Watt(s)
Operation Temp.:
Air Flow:
32 CFM / 55 m3/h
Noise Level: 1.0 Sone, The noise level is measured in Sone (loudness) instead of dB (sound intensity).
Air Pressure:
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Wire Length:

Heat Sink Dimension:
92.0 x 72.0 x 120.0 mm
Heat Sink Material:
Aluminum

Heat Sink Pitch:
Thickness of Fin:
Number of Fin:
Height of Fin:
Height of Base:
Length of Base:
