CPU Cooling
Fan (Blower) with
Heatsink (Heat Sink)

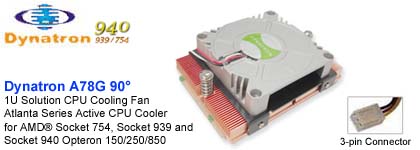

1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Atlanta Series A78G 90° for AMD® Socket 754, Socket 939 and Opteron Socket 940 for Opteron 150/250/850 FNC-940-A78G-1UB Model Number: Dynatron ( Top Motor ) Atlanta Series A78G Application: AMD® Socket 754, Socket 939 and Opteron Socket 940 for Opteron 150/250/850 1U server solution Overall Dimension: 100.0 x 74 x 27.5 mm Thermal Resistance: ---- °C/W Weight: 430 g RoHS Compliance Fan (Blower) Dimension: 70x70x16 mm Fan (Blower) Speed: 5800 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: ---- A Power: 6.24 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 9.39 CFM Air Pressure: 1.03 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 100.0 x 74.0 x 11.0 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.5 mm Thickness of Fin: 0.45 mm Number of Fin: 49 Height of Fin: 9.00 mm Height of Base: 3.5 mm Length of Base: 100.0 mm |
