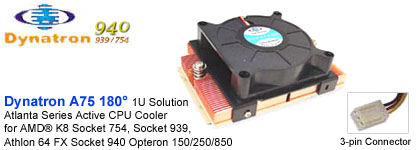

FNC-940-A75 CPU Cooling with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) 1U Solution A75

CPU Cooling Fan (Blower) with Heatsink (Heat-Sink)
1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Atlanta Series A75 180°
for AMD® K8 Socket 754, Socket 939,
Athlon 64 FX Socket 940 Opteron 150/250/850
FNC-940-A75-1UB

Model Number: Dynatron ( Top Motor ) Atlanta Series A75
Application: AMD® Socket 754, Socket 939 and Opteron Socket 940 for Opteron 150/250/850
Overall Dimension: 100.0 x 74.0 x 27.5 mm
Thermal Resistance: ---- °C/W
Weight: 398 g

Fan (Blower) Dimension: 70x70x16 mm
Fan (Blower) Speed: 5800 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: 0.52 A
Power: 6.24 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 9.39 CFM

Noise Level: 45.50 dBA
Air Pressure: 1.03 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 100.0 x 74.0 x 11.0 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.50 mm
Thickness of Fin: 0.45 mm
Number of Fin: 49
Height of Fin: 9.00 mm
Height of Base: 3.50 mm
Length of Base: 100.0 mm
