CPU Cooling
Fan (Blower) with
Heatsink (Heat-Sink)

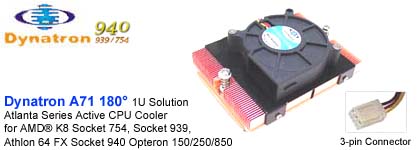

1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Atlanta Series A71 180° for AMD® K8 Socket 754, Socket 939, Athlon 64 FX Socket 940 Opteron 150/250/850 FNC-940-A71-1UB Model Number: Dynatron ( Top Motor ) Atlanta Series A71 Application: AMD® K8 Socket 754, Socket 939 and Opteron 150/250/850 Athlon 64 FX socket 940 Overall Dimension: 100 x 74 x 27 mm Thermal Resistance: ---- °C/W Weight: 395 g Fan (Blower) Dimension: 60x60x15 mm Fan (Blower) Speed: 6000 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.47 A Power: 5.64 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 7.40 CFM Air Pressure: 1.12 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 100 x 74 x 11 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.50 mm Thickness of Fin: 0.45 mm Number of Fin: 49 Height of Fin: 9.00 mm Height of Base: 3.50 mm Length of Base: 100.0 mm |
