CPU Cooling
Fan with Heatsink (Heat-Sink)

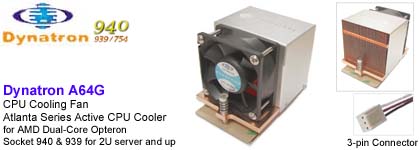

Dynatron (Top Motor) Atlanta Series A64G Active CPU Cooler for AMD Dual-Core Opteron Socket 940 & 939 for 2U server and up FNC-940-A64G Model Number: Dynatron ( Top Motor ) Atlanta Series A64G Application: AMD Dual-Core Opteron Socket 940 & 939 for 2U server and up Overall Dimension: 100 x 71.0 x 65.5 mm Thermal Resistance: ---- °C/W Weight: 670 g RoHS Compliance Fan Dimension: 60x60x25 mm Fan Speed: 7000 rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: ----A Power: 4.8 Watt (s) Operation Temp.: ----°C Air Flow: 35.3 CFM Air Pressure: 0.33 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: ---- mm Heat Sink Material: Copper hestink with L Fin Heat Sink Pitch: ---- mm Thickness of Fin: ---- mm Number of Fin: ---- Height of Fin: ---- mm Height of Base: ---- mm Length of Base: ---- mm |
