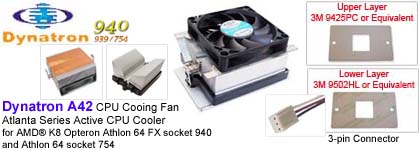

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Atlanta Series A42 Active CPU Cooler
for AMD® K8 Opteron Athlon 64 FX socket 940
and Athlon 64 socket 754
FNC-940-A42

Model Number:
Dynatron ( Top Motor ) Atlanta Series A42
Application:
AMD® K8 Opteron Athlon 64 FX socket 940 and Athlon 64 socket 754
Overall Dimension:
101 x 70 x 44 mm
Thermal Resistance: ---- °C/W
Weight: 345 g

Fan Dimension:
7
0x70x15 mm
Fan Speed: 4700
±10% rpm
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current: 0.37 A
Power: 4.44 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 33,95 CFM
Noise Level: 40.19 dBA
Air Pressure:
0.24 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output


Heat Sink Dimension:
77.0 x 68.0 x 26.0 mm
Heat Sink Material:
Aluminum & Copper embedded base

Heat Sink Pitch: 1.00 mm
Thickness of Fin: 0.50 mm
Number of Fin: 38
Height of Fin: 19.00 mm
Height of Base: 5.30 mm
Length of Base: 68.0 mm
