CPU Cooling
Fan with Heatsink (Heat-Sink)

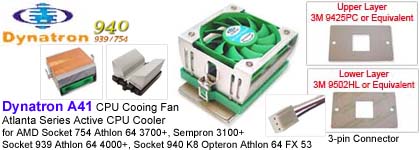

Dynatron (Top Motor) Atlanta Series A41 Active CPU Cooler for AMD Socket 754 Athlon 64 3700+ & 3800, Socket 754 Sempron 3100+ Socket 939 Athlon 64 4000+, Socket 940 K8 Opteron Athlon 64 FX 53 FNC-940-A41 Model Number: Dynatron ( Top Motor ) Atlanta Series A41 Application: AMD K8 Opteron Athlon 64 FX 53 socket 940, socket 939 and Athlon 64 socket 754 up to 3700 & 3800 Overall Dimension: 101 x 78 x 44 mm Thermal Resistance: 0.30 °C/W Weight: 342 g Fan Dimension: 70x70x15 mm Fan Speed: 4300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V Rated Current: 0.34 A Power: 4.08 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 30.24 CFM Air Pressure: 0.16 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 77.0 x 73.0 x 24.0 mm Heat Sink Material: V-Shape Aluminum A6063 heatsink with Copper base Heat Sink Pitch: 1.50 mm Thickness of Fin: 0.50 mm Number of Fin: 51 Height of Fin: 18.00 mm Height of Base: 6.00 mm Length of Base: 77.0 mm |
