CPU Cooling
Fan with Heatsink (Heat-Sink)

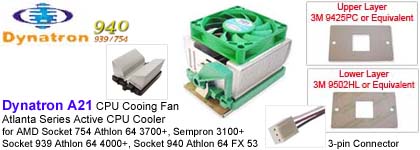

Dynatron (Top Motor) Atlanta Series A21 Active CPU Cooler for AMD Socket 754 Athlon 64 3700+, Socket 754 Sempron 3100+ Socket 939 Athlon 64 4000+, Socket 940 Athlon 64 FX 53 FNC-940-A21 Model Number: Dynatron ( Top Motor ) Atlanta Series A21 Application: AMD Socket 754 Athlon 64 3700+ Socket 939 Athlon 64 4000+ Socket 754 Sempron 3100+ Socket 940 Athlon 64 FX 53 Overall Dimension: 110.0 x 78.0 x 60.0 mm Thermal Resistance: 0.27 °C/W Weight: 317 g Fan Dimension: 70x70x15 mm Fan Speed: 4700 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V Rated Current: 0.37 A Power: 4.44 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 33.95 CFM Air Pressure: 0.24 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 77.0 x 78.0 x 41.0 mm Heat Sink Material: Aluminum A6063 Heat Sink Pitch: 1.50 mm Thickness of Fin: 0.50 mm Number of Fin: 51 Height of Fin: 33.00 mm Height of Base: 6.00 mm Length of Base: 77.0 mm |
