FNC-775-P6AG CPU Cooling with Heatsink Active CPU Cooler Dynatron ( Top-Motor ) P6AG

CPU Cooling Fan with Heatsink (Heat-Sink)

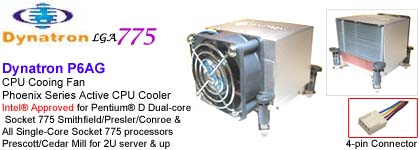

Dynatron (Top Motor) Phoenix Series P6AG Active CPU Cooler
Intel® Approved for Pentium® D Dual-core Socket 775
Smithfield / Presler / Conroe &
All Single-Core Prescott / Cedar Mill for 2U server & up
FNC-775-P6AG

Model: Dynatron ( Top Motor ) Phoenix Series P6AG
Application:
Intel® Approved for Pentium® D Dual-core Socket 775 Smithfield/Presler/Conroe & All Single-Core Socket 775 processors Prescott/Cedar Mill for 2U server & up
Thermal Resistance: ---- °C/W

Overall Dimension: 86.0 x 86.0 x 68.0 mm
Weight: 495 g
RoHS Compliance

Fan Dimension: 60.0 x 60.0 x 25.0 mm
Fan Speed:
At Duty Cycle 25%: 5500 rpm
At Duty Cycle 50%: 6500 rpm
At Duty Cycle 100%: 8500 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power:
At Duty Cycle 25%: 2.5W
At Duty Cycle 50%: 3.6 W
At Duty Cycle 100%: 7.92 W
Operation Temp.: -10°C ~ +65°C
Air Flow:
At Duty Cycle 25%: 28.91 cfm
At Duty Cycle 50%: 34.16 cfm
At Duty Cycle 100%: 44.68 cfm

Noise Level:
At Duty Cycle 25%: 13.1 dBA
At Duty Cycle 50%: 39.5 dBA
At Duty Cycle 100%: 48.8 dBA
Air Pressure:
At Duty Cycle 25%: 0.329 inch-H2O
At Duty Cycle 50%: 0.460 inch-H2O
At Duty Cycle 100%: 0.786 inch-H2O
Lead Wire Pin Out:
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)

Heat Sink Dimension: ---- mm
Heat Sink Material: Copper and Aluminum heatsink with heatpipes
Thermal Compound: ----
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
