FNC-775-P66G CPU Cooling with Heatsink Active CPU Cooler Dynatron ( Top-Motor ) P66G

CPU Cooling Fan with Heatsink (Heat-Sink)

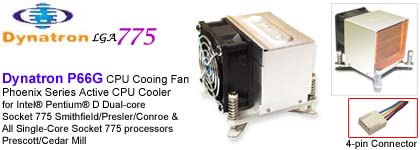

Dynatron (Top Motor) Phoenix Series P66G Active CPU Cooler
for Intel® Pentium® D Dual-core Socket 775
Smithfield / Presler / Conroe &
All Single-Core Prescott / Cedar Mill
FNC-775-P66G

Model: Dynatron ( Top Motor ) Phoenix Series P66G
Application:
Intel® Pentium® D Dual-core Socket 775 Smithfield / Presler / Conroe & All Single-Core Socket 775 processors Prescott / Cedar Mill
Thermal Resistance: ---- °C/W

Overall Dimension: 96.0 x 85.0 x 68.0 mm
Weight: 700 g

Fan Dimension: 60.0 x 60.0 x 25.0 mm
Fan Speed:
At Duty Cycle 25%: 5500 rpm
At Duty Cycle 50%: 6500 rpm
At Duty Cycle 100%: 8500 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power:
At Duty Cycle 25%: 2.5W
At Duty Cycle 50%: 3.6 W
At Duty Cycle 100%: 7.92 W
Operation Temp.: -10°C ~ +65°C
Air Flow:
At Duty Cycle 25%: 28.91 cfm
At Duty Cycle 50%: 34.16 cfm
At Duty Cycle 100%: 44.68 cfm

Noise Level:
At Duty Cycle 25%: 13.1 dBA
At Duty Cycle 50%: 39.5 dBA
At Duty Cycle 100%: 48.8 dBA
Air Pressure:
At Duty Cycle 25%: 0.329 inch-H2O
At Duty Cycle 50%: 0.460 inch-H2O
At Duty Cycle 100%: 0.786 inch-H2O
Lead Wire Pin Out:
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)

Heat Sink Dimension: ---- mm
Heat Sink Material: Copper with Heatpipes (Heat-Pipe)
Thermal Compound: Dow Coming TC-5021Thermal Compound
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
