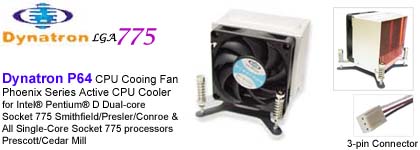

FNC-775-P64 Pentium-D, Smithfield, Presler, conroe, Prescott, Cedar Mill, CPU Cooling with Heatsink Active CPU Cooler Dynatron ( Top-Motor ) P64

CPU Cooling Fan with Heatsink (Heat-Sink)
Dynatron (Top Motor) Phoenix Series P64 Active CPU Cooler
for Intel® Pentium® D Dual-core Socket 775
Smithfield, Presler, Conroe & All Single-Core Prescott, Cedar Mill
FNC-775-P64

Model: Dynatron ( Top Motor ) Phoenix Series P64
Application:
Intel® Pentium® D Dual-core Socket 775 Smithfield / Presler / Conroe & All Single-Core Socket 775 processors Prescott / Cedar Mill
Thermal Resistance: ---- °C/W

Overall Dimension: 83.0 x 88.5 x 74.0 mm
Weight: 270 g

Fan Dimension: 70.0 x 70.0 x 15.0 mm
Fan Speed:
At Duty Cycle 25%: 2000 rpm
At Duty Cycle 50%: 3800 rpm
At Duty Cycle 100%: 6000 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power:
At Duty Cycle 25%: 0.96 W
At Duty Cycle 50%: 2.4 W
At Duty Cycle 100%: 6.6 W
Operation Temp.: -10°C ~ +65°C
Air Flow:
At Duty Cycle 25%: 16.23 cfm
At Duty Cycle 50%: 32.13 cfm
At Duty Cycle 100%: 49.65 cfm

Noise Level:
At Duty Cycle 25%: 20.23 dBA
At Duty Cycle 50%: 34.39 dBA
At Duty Cycle 100%: 44.88 dBA
Air Pressure:
At Duty Cycle 25%: 0.042 inch-H2O
At Duty Cycle 50%: 0.154 inch-H2O
At Duty Cycle 100%: 0.378 inch-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)

Heat Sink Dimension: ---- mm
Heat Sink Material: Copper with Heatpipe ( Heat-Pipe )
Thermal Compound: Dow Coming TC-5021 Thermal Compound
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
