CPU Cooling Fan with Heatsink (Heat-Sink)

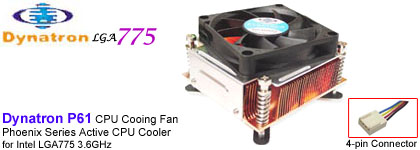

 Dynatron (Top Motor) Phoenix Series P61 Active CPU Cooler
for Intel LGA775 3.6GHz
FNC-775-P61

Model: Dynatron ( Top Motor ) Phoenix Series P61
Application: Intel LGA775 3.6GHz
Thermal Resistance: ----  °C/W
Overall Dimension: 83.0 x 92.0 x 45.0 mm
Weight: 540 g

Fan Dimension: 70.0 x 70.0 x 15.0  mm
Fan Speed:
At Duty Cycle 25%: 2000 rpm
At Duty Cycle 50%: 3800 rpm
At Duty Cycle 100%: 6000 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power:
At Duty Cycle 25%: 0.96 W
At Duty Cycle 50%: 2.4 W
At Duty Cycle 100%: 6.6 W
Operation Temp.: -10°C ~ +65°C
Air Flow:
At Duty Cycle 25%: 16.23 cfm
At Duty Cycle 50%: 32.13 cfm
At Duty Cycle 100%: 49.65 cfm
Noise Level:
At Duty Cycle 25%: 20.23 dBA
At Duty Cycle 50%: 34.39 dBA
At Duty Cycle 100%: 44.88 dBA
Air Pressure:
At Duty Cycle 25%: 0.042 inch-H2O
At Duty Cycle 50%: 0.154 inch-H2O
At Duty Cycle 100%: 0.378 inch-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Heat Sink Dimension: 83.0 x 87.0 x 26.5 mm
Heat Sink Material: Copper
Heat Sink Pitch: 1.5 mm
Thickness of Fin: 0.5 mm
Number of Fin: 44
Height of Fin: 20.0 mm
Height of Base: 2.3 mm
Length of Base: 87.0 mm
