CPU Cooling Fan with Heatsink (Heat-Sink)

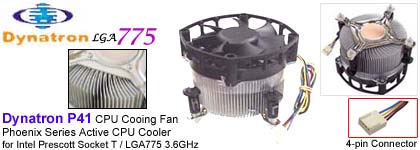

 Dynatron (Top Motor) Phoenix Series P41 Active CPU Cooler
for Intel Prescott Socket T / LGA775 3.6GHz
FNC-775-P41

Model: Dynatron ( Top Motor ) Phoenix Series P41
Application: Intel Prescott Socket T / LGA775 3.6GHz
Thermal Resistance: 0.25  °C/W
Overall Dimension: ---- mm
Weight: 606 g

Fan Dimension: 102.0 x 102.0 x 25.0  mm
Fan Speed: 4400 rpm +/- 10%
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power: ---- W
Operation Temp.: -10°C ~ +65°C
Air Flow: 78.00 cfm
Noise Level: 48.00 dBA
Air Pressure: ---- inch-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Heat Sink Dimension: 89.0 x 89.0 x 37.0 mm
Heat Sink Material: Aluminum AL6063 with Embedded Copper Base CU1100
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
