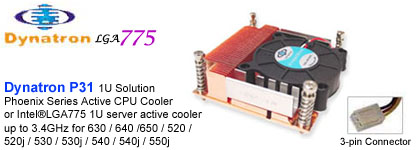

FNC-775-P31-1UB CPU Cooling with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) 1U Solution P31

CPU Cooling Fan (Blower) with Heatsink (Heat-Sink)
1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Phoenix Series P31
for Intel®LGA775 1U server active cooler up to 3.4GHz
630 / 640 /650 / 520 / 520j / 530 / 530j / 540 / 540j / 550j
FNC-775-P31-1UB

Model Number: Dynatron ( Top Motor ) Phoenix Series P31
Application: Intel®LGA775 1U server active cooler up to 3.4GHz for 630 / 640 /650 / 520 / 520j / 530 / 530j / 540 / 540j / 550j
Overall Dimension: 83 x 88.5 x 26.5 mm
Thermal Resistance: ---- °C/W
Weight: 420 g

Fan (Blower) Dimension: 60x60x16 mm
Fan (Blower) Speed: 6100 ±10% rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: 0.40 A
Power: 4.80 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 6.75 CFM

Noise Level: 47.90 dBA
Air Pressure: 0.59 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 83.0 x 83.0 x 26.5 mm
Heat Sink Material: Copper
Heat Sink Pitch: 1.80 mm
Thickness of Fin: 0.50 mm
Number of Fin: 46
Height of Fin: 20.50 mm
Height of Base: 6.00 mm
Length of Base: 83.0 mm
