CPU Cooling Fan with Heatsink (Heat-Sink)

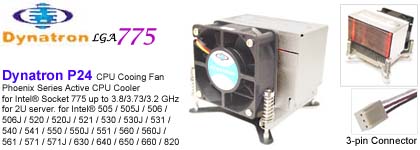

 Dynatron (Top Motor) Phoenix Series P24 Active CPU Cooler
for IntelŪ Socket 775 up to 3.8/3.73/3.2 GHz for 2U server.
For IntelŪ 505 / 505J / 506 / 506J / 520 / 520J / 521 / 530 /
530J / 531 / 540 / 541 / 550 / 550J / 551 / 560 / 560J / 561 /
571 / 571J / 630 / 640 / 650 / 660 / 820
FNC-775-P24

Model: Dynatron ( Top Motor ) Phoenix Series P24
Application:
IntelŪ Socket 775 up to 3.8/3.73/3.2 GHz for 2U server.
For IntelŪ 505 / 505J / 506 / 506J / 520 / 520J / 521 / 530 / 530J / 531 / 540 / 541 / 550 / 550J / 551 / 560 / 560J / 561 / 571 / 571J / 630 / 640 / 650 / 660 / 820
Thermal Resistance: ----  °C/W
Overall Dimension: 87.5 x 88.0 x 65.5  mm
Weight: 440 g

Fan Dimension: 60.0 x 60.0 x 25.0  mm
Fan Speed: 7000 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power: 4.8 W
Operation Temp.: -10°C ~ +65°C
Air Flow: 35.3 cfm
Noise Level: 45.9 dBA
Air Pressure: 0.33 inch-H2O
Lead Wire Pin Out: Pin1- (-), Pin2- (+), Pin3- (Techometer/Signal output)

Heat Sink Dimension: 48 x 80 x 65.5 mm
Heat Sink Material: Copper and Aluminum heatsink with heatpipes
Thermal Compound: ----
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
