FNC-775-P22 CPU Cooling with Heatsink Active CPU Cooler Dynatron ( Top-Motor ) P22

CPU Cooling Fan with Heatsink (Heat-Sink)

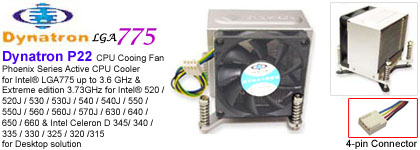

Dynatron (Top Motor) Phoenix Series P22 Active CPU Cooler
for Intel® LGA775 up to 3.6GHz &
Extreme Edition 3.73GHz
FNC-775-P22

Model: Dynatron ( Top Motor ) Phoenix Series P22
Application:
Intel® LGA775 up to 3.6GHz & Extreme Edition 3.73GHz
for Intel® 520 / 520J / 530 / 530J / 540 / 540J / 550 / 550J / 560 / 560J / 570J / 630 / 640 / 650 / 660 &
Intel Celeron D 345/ 340 / 335 / 330 / 325 / 320 /315
Thermal Resistance: ---- °C/W

Overall Dimension: 83.0 x 88.5 x 74.0 mm
Weight: 270 g

Fan Dimension: 70.0 x 70.0 x 15.0 mm
Fan Speed:
At Duty Cycle 25%: 2000 rpm
At Duty Cycle 50%: 3800 rpm
At Duty Cycle 100%: 6000 rpm
Bearing: Double Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power:
At Duty Cycle 25%: 0.96 W
At Duty Cycle 50%: 2.4 W
At Duty Cycle 100%: 6.6 W
Operation Temp.: -10°C ~ +65°C
Air Flow:
At Duty Cycle 25%: 16.23 cfm
At Duty Cycle 50%: 32.13 cfm
At Duty Cycle 100%: 49.65 cfm

Noise Level:
At Duty Cycle 25%: 20.23 dBA
At Duty Cycle 50%: 34.39 dBA
At Duty Cycle 100%: 44.88 dBA
Air Pressure:
At Duty Cycle 25%: 0.042 inch-H2O
At Duty Cycle 50%: 0.154 inch-H2O
At Duty Cycle 100%: 0.378 inch-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)

Heat Sink Dimension: ---- mm
Heat Sink Material: Aluminum with Heatpipe ( Heat-Pipe )
Thermal Compound: Shin-Etsu G751 Thermal Compound
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
