CPU Cooling Fan with Heatsink (Heat-Sink)

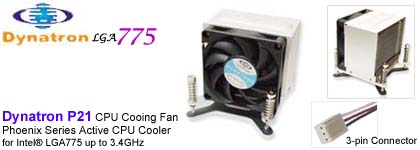

 Dynatron (Top Motor) Phoenix Series P21 Active CPU Cooler
for IntelŪ LGA775 up to 3.4GHz
FNC-775-P21
Model: Dynatron ( Top Motor ) Phoenix Series P21
Application:
IntelŪ LGA775 up to 3.4 GHz for IntelŪ 520 / 520J / 530 / 530J / 540 / 540J / 550J / 630 / 640 / 650
IntelŪ Celeron D 345/ 340 / 335 / 330 / 325 / 320 /315
Thermal Resistance: ----  °C/W
Overall Dimension: 83.0 x 88.5 x 74.0  mm
Weight: 270 g

Fan Dimension: 70.0 x 70.0 x 15.0  mm
Fan Speed: 4700 rpm +/- 10%
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current: 0.37 A
Power: 4.44 W
Operation Temp.: -10°C ~ +65°C
Air Flow: 33.95 cfm
Noise Level: 40.19 dBA
Air Pressure: 0.24 inch-H2O
Lead Wire Pin Out:
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)

Heat Sink Dimension: ---- mm
Heat Sink Material: Aluminum with Heatpipe ( Heat-Pipe )
Thermal Compound: Shin-Etsu G751 Thermal Compound
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: ----
Height of Fin: ---- mm
Height of Base: ---- mm
Length of Base: ---- mm
