CPU Cooling
Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Hawaii Series H66 Active CPU Cooler for Intel® P4 423, Xeon™ Socket 603/604 up to 3.4GHz FNC-Xeon-H66-CPR |
 |
|
CPU Cooling
Fan with Heatsink (Heat-Sink)

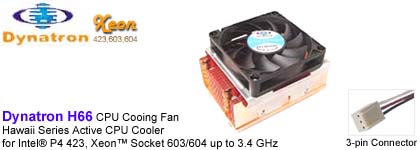

Dynatron (Top Motor) Hawaii Series H66 Active CPU Cooler for Intel® P4 423, Xeon™ Socket 603/604 up to 3.4GHz Model Number: Dynatron ( Top Motor ) Hawaii Series H66 Application: Intel® Xeon™ Socket 603/604 up to 3.4GHz Overall Dimension: 95.0 x 78.0 x 46.0 mm Thermal Resistance: ---- Weight: 675 g Fan Dimension: 70x70x15 mm Fan Speed: 4300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V Rated Current: 0.34 A Power: 4.08 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 30.24 CFM Air Pressure: 0.16 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 95.0 x 64.0 x 32.0 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: ---- mm Thickness of Fin: ---- mm Number of Fin: 36 Height of Fin: 28.00 mm Height of Base: 4.00 mm Length of Base: 95.0 mm |
