CPU Cooling
Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Hawaii Series H65 Active CPU Cooler for Intel® P4 423, Xeon™ Socket 603/604 up to 3.2GHz FNC-Xeon-H65-CPR |
 |
|
CPU Cooling
Fan with Heatsink (Heat-Sink)

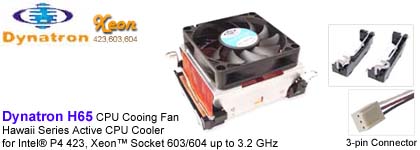

Dynatron (Top Motor) Hawaii Series H65 Active CPU Cooler for Intel® P4 423, Xeon™ Socket 603/604 up to 3.2GHz Model Number: Dynatron ( Top Motor ) Hawaii Series H65 Application: Intel® Xeon™ Socket 603/604 up to 3.2GHz Overall Dimension: 89.0 x 69.5 x 48.0 mm Thermal Resistance: ---- Weight: 530 g Fan Dimension: 70x70x15 mm Fan Speed: 4300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V Rated Current: 0.34 A Power: 4.08 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 30.24 CFM Air Pressure: 0.16 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 89.0 x 63.5 x 27.0 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.0 mm Thickness of Fin: 0.50 mm Number of Fin: 37 Height of Fin: 23.00 mm Height of Base: 3.50 mm Length of Base: 89.0 mm |
