CPU Cooling
Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Hawaii Series H61 DC1206BM-Y-X Active CPU Cooler for Intel® P4 423, Xeon™ Socket 603/604 up to 3.06GHz FNC-Xeon-H61-CPR |
 |
|
CPU Cooling
Fan with Heatsink (Heat-Sink)

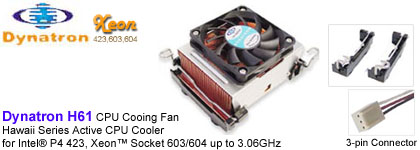

Dynatron (Top Motor) Hawaii Series H61 DC1206BM-Y-X Active CPU Cooler for Intel® P4 423, Xeon™ Socket 603/604 up to 3.06GHz FNC-Xeon-H61-CPR Model Number: Dynatron ( Top Motor ) Hawaii Series H61 ( DC1206BM-Y/X ) Application: Intel® P4 423, Xeon™ Socket 603/604 up to 3.06GHz Overall Dimension: 88.5 x 62.6 x 40.6 mm Thermal Resistance: ---- Weight: 488 g Fan Dimension: 60x60x10 mm Fan Speed: 5300 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.29 A Power: 3.48 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 24.40 CFM Air Pressure: 0.18 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 88.5 x 60.0 x 26.0 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.7 mm Thickness of Fin: 0.55 mm Number of Fin: 35 Height of Fin: 22.50 mm Height of Base: 3.50 mm Length of Base: 88.5 mm |
