CPU Cooling
Fan
(Blower) with

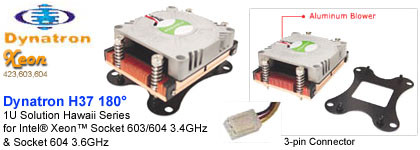

Heatsink (Heat Sink) 1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H37 180° for Intel® Xeon™ Socket 603/604 3.4GHz & Socket 604 3.6GHz FNC-Xeon-H37-1UB |
 |
|
CPU Cooling Fan
(Blower) with Heatsink (Heat Sink)
1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H37 180° for Intel® Xeon™ Socket 603/604 3.4GHz & Socket 604 3.6GHz Model Number: Dynatron ( Top Motor ) Hawaii Series H37 Application: Intel® Xeon™ Socket 603/604 3.4GHz & Socket 604 3.6GHz Overall Dimension: 90.0 x 73.7 x 27.0 mm Thermal Resistance: ---- °C/W Weight: ---- g Fan (Blower) Dimension: 70x70x16 mm Fan (Blower) Speed: 5800 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.52 A Power: 6.24 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 9.39 CFM Air Pressure: 1.03 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 90.0 x 64.0 x 11.5 mm Heat Sink Material: Copper Heat Sink Pitch: 1.0 mm Thickness of Fin: ---- mm Number of Fin: 48 Height of Fin: 8.00 mm Height of Base: 3.0 mm Length of Base: 90.0 mm |
