CPU Cooling
Fan
(Blower) with
Heatsink (Heat Sink) 1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H34 (DC1U-BO3/X 180°) for Intel® Xeon™ Socket 423, 603, 604 up to 3.06GHz FNC-Xeon-H34-1UB |
 |
|
CPU Cooling
Fan
(Blower) with
Heatsink (Heat Sink)

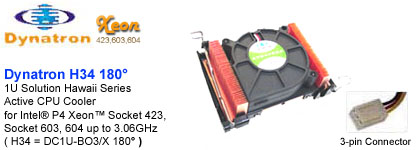

1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H34 (DC1U-BO3/X 180°) for Intel® Xeon™ Socket 423, 603, 604 up to 3.06GHz Model Number: Dynatron ( Top Motor ) Hawaii Series H34 Application: Intel® P4 Xeon™ Socket 603 up to 3.06GHz for 1U server Overall Dimension: 88.0 x 65.0 x 25.0 mm Thermal Resistance: ---- °C/W Weight: 332 g Fan (Blower) Dimension: 60 x 60 x 15 mm Fan (Blower) Speed: 6000 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.47 A Power: 5.64 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 7.4 CFM Air Pressure: 1.12 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 88.3 x 59.7 x 24.1 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.28 mm Thickness of Fin: 0.45 mm Number of Fin: 47 Height of Fin: 21.1 mm Height of Base: 3.0 mm Length of Base: 59.8 mm |
