CPU Cooling
Fan
(Blower) with
Heatsink (Heat Sink) 1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H33 90° for Intel® Xeon™ Socket 423, 603, 604 up to 2.8GHz FNC-Xeon-H33-1UB |
 |
|
CPU Cooling Fan
(Blower) with
Heatsink (Heat Sink)

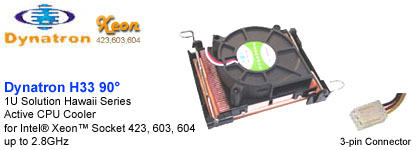

1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H33 90° for Intel® Xeon™ Socket 423, 603, 604 up to 2.8GHz Model Number: Dynatron ( Top Motor ) Hawaii Series H33 Application: Intel® Xeon™ Socket 603/604 up to 2.8GHz for 1U server Overall Dimension: 88.5 x 62 x29.5 mm Thermal Resistance: ---- °C/W Weight: 345 g Fan (Blower) Dimension: 60 x 60 x 15 mm Fan (Blower) Speed: 6000 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.47 A Power: 5.64 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 7.4 CFM Air Pressure: 1.12 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 89 x 80 x 12.9 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.3 mm Thickness of Fin: 0.5 mm Number of Fin: 46 Height of Fin: 9.1 mm Height of Base: 4.5 mm Length of Base: 60 mm |
