CPU Cooling
Fan with

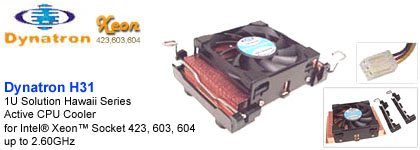

Heatsink 1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H31 for Intel® Xeon™ Socket 423, 603, 604 2.60GHz for 1U server FNC-Xeon-H31-1U |
 |
|
CPU Cooling
Fan with
Heatsink
1U Solution (Active CPU Cooler for 1U Server) Dynatron (Top Motor) Hawaii Series H31 for Intel® Xeon™ Socket 423, 603, 604 2.60GHz for 1U server Model Number: Dynatron ( Top Motor ) Hawaii Series H31 Application: Intel® Xeon™ Socket 603/604 2.60GHzfor 1U server Overall Dimension: 89.3 x 62 x 25 mm Thermal Resistance: 0.44 °C/W Weight: 334 g Fan Dimension: 60 x 60 x 10 mm Fan Speed: 5300 ±10% rpm Bearing: Double Ball Bearing Rated Voltage: 12V Rated Current: 0.32 A Power: 3.84 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 23.39 CFM Air Pressure: 1.18 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 89 x 60 x 12.9 mm Heat Sink Material: Copper C1020 Heat Sink Pitch: 1.3 mm Thickness of Fin: 0.5 mm Number of Fin: 46 Height of Fin: 9.1 mm Height of Base: 4.5 mm Length of Base: 60 mm |
