CPU Cooling
Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Hawaii Series H29 Active CPU Cooler for Intel P4 Socket 423, Xeon 603/604 2.80 GHz FNC-Xeon-H29 |
 |
|
CPU Cooling
Fan with Heatsink (Heat-Sink)

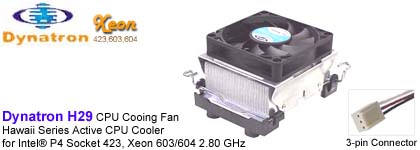

Dynatron (Top Motor) Hawaii Series H29 Active CPU Cooler for Intel P4 Socket 423, Xeon 603/604 2.80 GHz Application: Intel P4 Socket 423, Xeon Socket 603, Xeon Socket 604 Overall Dimension: 89.0 x 63.5 x 52.0 mm
Weight: 300 g
Fan Dimension: 70x70x15 mm Fan Speed: 4300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V Rated Current: 0.34 A Power: 4.08 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 30.24 CFM Air Pressure: 0.16 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Fan Dimension: 89.0 x 63.5 x 32.0 Heat Sink Material: Aluminum Heat Sink Pitch: 1.0 mm Thickness of Fin: 0.5 mm Number of Fin: 42 Height of Fin: 23.50 mm Height of Base: 5.10 mm Length of Base: 89 mm |
