FNC-478-D66-CPR CPU Cooling with Heatsink Active CPU Cooling Fan Dynatron ( Top Motor ) D66

CPU Cooling Fan with Heatsink (Heat-Sink)

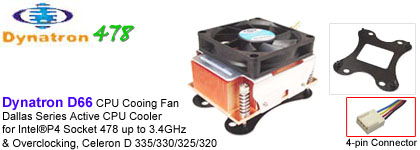

Dynatron (Top Motor) Dallas Series D66 Active CPU Cooler
for Intel®P4 Socket 478 up to 3.4GHz & Overclocking
Celeron D 335/330/325/320
FNC-478-D66-CPR

Model: Dynatron ( Top Motor ) Dallas Series D66
Application: Intel®P4 Socket 478 up to 3.4GHz & Overclocking ( Over Clocking ) & Celeron D 335/330/325/320
Thermal Resistance:

Overall Dimension: 95.0 x 74.5 x 47.5 mm
Weight: 646 g

Fan Dimension: 70x70x15 mm
Fan Speed:
At Duty Cycle 25%: 2000 rpm
At Duty Cycle 50%: 3800 rpm
At Duty Cycle 100%: 6000 rpm
Bearing: Ball Bearing
Rated Voltage: 12V
Rated Current: ---- A
Power:
At Duty Cycle 25%: 0.96 W
At Duty Cycle 50%: 2.4 W
At Duty Cycle 100%: 6.6 W
Operation Temp.: -10°C ~ +65°C
Air Flow:
At Duty Cycle 25%: 16.23 cfm
At Duty Cycle 50%: 32.13 cfm
At Duty Cycle 100%: 49.65 cfm

Noise Level:
At Duty Cycle 25%: 20.23 dBA
At Duty Cycle 50%: 34.39 dBA
At Duty Cycle 100%: 44.88 dBA
Air Pressure:
At Duty Cycle 25%: 0.042 inch-H2O
At Duty Cycle 50%: 0.154 inch-H2O
At Duty Cycle 100%: 0.378 inch-H2O
Lead Wire Pin Out:
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM)

Heat Sink Dimension: 95.0 x 69.0 x 28.0 mm
Heat Sink Material: Copper
Heat Sink Pitch: ---- mm
Thickness of Fin: ---- mm
Number of Fin: 39
Height of Fin: 24.00 mm
Height of Base: 4.00 mm
Length of Base: 95.0 mm
