CPU Cooling

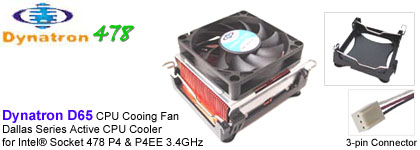

Fan with Heatsink (Heat-Sink) Dynatron (Top Motor) Dallas Series D65 Active CPU Cooler for Intel® Socket 478 P4 & P4EE 3.4GHz FNC-478-D65-CPR Model: Dynatron ( Top Motor ) Dallas Series D65 Application: Intel® Socket 478 P4 & P4EE 3.4GHz Thermal Resistance:
Overall
Dimension:
89.0 x 63.5 x 48.0 mm
Weight: 530 g Fan Dimension: 70x70x15 mm Fan Speed: 4300 ±10% rpm Bearing: Ball Bearing Rated Voltage: 12V Rated Current: 0.34 A Power: 4.08 Watt(s) Operation Temp.: -10°C ~ +65°C Air Flow: 30.24 CFM Air Pressure: 0.16 inch-H2O Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output Heat Sink Dimension: 89.0 x 63.5 x 27.0 mm Heat Sink Material: Copper Heat Sink Pitch: 1.0 mm Thickness of Fin: 0.50 mm Number of Fin: 37 Height of Fin: 23.00 mm Height of Base: 3.50 mm Length of Base: 89.0 mm |
