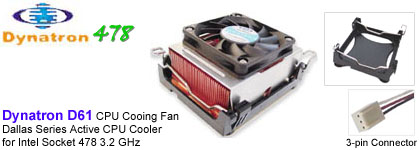

CPU Cooling Fan (Blower) with Heatsink
 1U Solution (Active CPU Cooler for 1U Server)
Dynatron (Top Motor) Dallas Series D3B 90°
for Socket 478
FNC-478-D3B-1UB

Model: Dynatron ( Top Motor ) Dallas Series D61 ( DC1206BM-Y )
Application: Intel P4 Socket 478 3.2GHz
Thermal Resistance:
Overall Dimension: 88.5 x 62.6 x 40.6 mm
Weight: 488 g

Fan Dimension: 60x60x10 mm
Fan Speed: 4500 ±10% rpm
Bearing: Single Ball Bearing
Rated Voltage: 12V
Rated Current: 0.24 A
Power: 2.88 Watt(s)
Operation Temp.: -10°C ~ +65°C
Air Flow: 19.86 CFM
Noise Level: 33.84 dBA
Air Pressure: 0.13 inch-H2O
Lead Wire Pin Out: Pin1-Black (-), Pin2-Red (+), Pin3-Techometer/Signal output

Heat Sink Dimension: 88.5 x 60.0 x 26.0 mm
Heat Sink Material: Copper C1020
Heat Sink Pitch: 1.7 mm
Thickness of Fin: 0.55 mm
Number of Fin: 35
Height of Fin: 22.50 mm
Height of Base: 3.50 mm
Length of Base: 88.5 mm
